SolarBox^TM

A fast deployment, hybrid-ready clean-power platform.
Engineered for lower LCOE in a 40-ft container

Brochure Get in Touch

250 kWp

Design Capacity

120 m

Deployed Array

1 × 40’ HC

Container

< 3 hrs

On-site Deployment

The Product

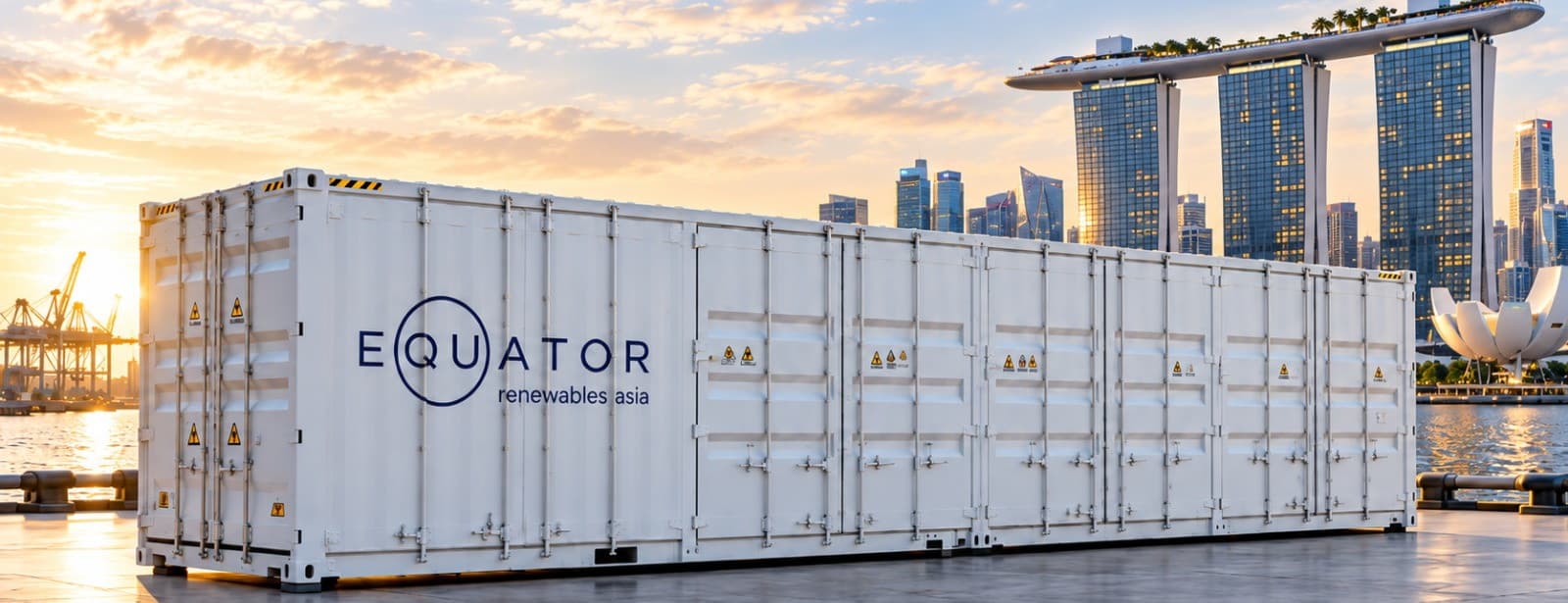

A Complete Solar Power Plant in a Container

SolarBox^TM integrates PV generation, deployment structure, electrical protection, inverter interface and monitoring into one transportable platform. It ships like a container, deploys like infrastructure, and operates like a power plant.

Engineered in Singapore. Pre-assembled at the factory. Folded for transit. Unfolded at site.

SolarBox™ PV tables deployed in rows on open ground

See it works

2 Person Crew, < 3 Hours Deployment Time

A complete 250 kWp solar power plant built into a single 40-ft container deployed at PSA’s Keppel Terminal

Deployment

The container opens and the array extends out across open ground. Foundation-light and self-contained, it brings clean power to rural and off-grid sites in under 3 hours.

Retraction

The same array folds back down and packs into the container, ready to move to the next site. Shipped by road, rail or sea, it can be redeployed on islands and in remote communities wherever power is needed next.

Key Advantages

Faster Deployment

Pre-assembled architecture cuts site works and commissioning time.

Lower LCOE

Engineered for lower delivered cost of energy.

Hybrid-Ready

Integrates with grid, BESS, diesel genset, and load management.

Reduced Civil Works

Foundation-light installation lowers mobilisation cost and complexity.

All-Weather Protection

Containerised electrical equipment and secure stowage mode.

Relocatable Design

Foldable mechanism allows the platform to be moved between project sites.

LCOE Explorer

Estimated Capex LCOE by location

SolarBox^TM cost advantage is designed to come primarily from reducing site work and standardising deployment, rather than relying on lower component prices alone.

Select a country on the map to find the estimated Capex LCOE for SolarBox^TM deployment there.

Estimated PV Power Output — kWh/kWp/year < 1,350 1,350–1,600 1,600–1,850 > 1,850

Selected country

Singapore

0.000US¢ / kWh

Insert your PV Power Output (kWh/kWp/year) to estimate the Capex LCOE

Disclaimer: Indicative estimate on Capex LCOE for 1 SolarBox^TM deployment only, not a price quotation or financial advice. Capex LCOE calculated based on equipment cost delivered FOB China in Q32026 and does not include other ancillary costs such as transportation and site installation. Yield source: Global Solar Atlas PVOUT (Solargis, data version 2.2.68, updated April 2026), long-term average photovoltaic output in kWh/kWp per year, read at one representative location per country.

Configurations & Deployment

How the SolarBox^TM Deploys

The SolarBox^TM scales from a single unit to a 10 MW utility array. Below are four recognised electrical configurations, the on-site deployment sequence, and the use-case fit by sector — so you can pick the right one before we engineer the site.

Each SolarBox^TM: 200 kW AC / 235–250 kWp DC. Configuration totals below are stated in kWp DC.

CONFIG-1Single Container

250 kWp

Small C&I

1 × SolarBox^TM → MDB

Direct 400 V LV connection
Rooftop or workshop loads
Class 0.5S meter at MDB

CONFIG-2AC Combiner Cluster

1,000 kWp

Medium C&I

4 × SolarBox^TM units → AC Combiner → MDB

2,000 A combiner busbar
Selective earth-fault tripping
Per-feeder yield monitoring

CONFIG-3Hybrid + ESS

750 kWp PV + 964 kWh

Microgrid

3 × SolarBox^TM + 4 × Grid-forming ESS

Grid-forming (VSG) via ESS
Black-start, < 20 ms transfer
Critical-load island bus

CONFIG-4Utility-Scale 20 to 34.5 kV MV

10,000 kWp

Utility / IPP

40 × SolarBox^TM units → 5 × Combiner → 10 MVA Tx

Step-up to 34.5 kV MV
OC / EF / LVRT relay set
DNP3 / IEC 61850 SCADA

On-site Deployment

Typical sequence

Site Survey

Load profile, irradiation, soil bearing, grid interface.

Logistics

Ship as 1 × 40 ft HQ — road, rail or sea; 21 t gross.

Position

Roller-wheel chassis; ballast or anchor; no concrete pad.

Unfold

Manual-winch linked PV tables — < 3 hrs, 4-person crew.

Connect & Commission

Single AC tie-in; FAT-tested; remote start-up via gateway.

Where It Fits

Built for any site. Configured for any architecture.

Sector	Typical Load	Config-1	Config-2	Config-3	Config-4	Primary Value
Mining & remote industry	0.5–10 MW	●	●●	●●●	●●	Diesel displacement, relocatable
Agriculture & plantation	0.2–2 MW	●●	●●●	●●	—	Daytime self-consumption
Island & atoll utilities	0.3–5 MW	●	●●	●●●	—	Grid-forming microgrid
Disaster relief / defence	0.2–1 MW	●●●	●●	●	—	Rapid power, < 3 hr live
Construction sites	0.5–5 MW	●	●●●	●●	●	Multi-year, re-deployable
Utility / IPP	5–50 MW	—	●	●●	●●●	MV injection, PPA-grade

● suitable · ●● strong fit · ●●● recommended

Industry Applications

SolarBox^TM Use Cases

Mining & Remote Industry

Ideal for temporary mining loads, early-stage operations and staged site development. Relocatable SolarBox^TM unit can be moved and redeployed across multiple mining areas. Battery storage can be added to firm up supply and cover peak or night-time loads.

Agriculture & Plantation

Ideal for irrigation pumping, cold storage and processing loads in fields far from the grid. SolarBox^TM unit can be deployed alongside seasonal or expanding plantation operations and relocated as cultivation areas shift. Battery storage can be added to extend power availability into early morning or evening operations.

Island & Atoll Utilities

Ideal for diesel offset and stable power supply in geographically isolated communities with limited grid access. Battery storage can be added to provide 24-hour power and reduce reliance on diesel backup.

Disaster Relief / Defence

Ideal for rapid-deployment emergency power following natural disasters or in forward operating and temporary defence installations. Fully self-contained, transportable SolarBox^TM unit can be transported and commissioned quickly with minimal infrastructure. Battery storage can be added for uninterrupted, silent and resilient power during critical operations.

Construction Sites

Ideal for temporary site power during builds, replacing or supplementing diesel gensets for tools, lighting and site facilities. Relocatable SolarBox^TM unit moves with the project as it progresses through phases or across multiple sites. Battery storage can be added to smooth out demand peaks and cut fuel costs.

Utility / IPP (Independent Power Producer)

Ideal for grid-connected or hybrid generation projects requiring lower cost, fast deployment and modular capacity expansion. Standardised SolarBox^TM units allow scalable rollout, easy transport to project sites and simplified integration with existing grid infrastructure. Battery storage can be added to enable dispatchable generation and grid stability services.

Technical Specifications

Engineered to your site

Final configuration is site-specific. ERA engineers each SolarBox^TM to match your load profile, irradiation, site constraints, battery requirement, logistics route and grid/genset interface.

PV rated capacity	235 – 250 kWp DC
Module type	N-Type TOPCon Bifacial
Module dimensions	2382 × 1134 × 30 mm
Inverter configuration	2 × 100 / 115 kW off-grid (hybrid option available)
AC output	400 V three-phase, 50 / 60 Hz
Battery interface	Optional BESS — Depending on project’s requirement
Container	1 × 40 ft High-Cube — 12,192 × 2,438 × 2,896 mm. CSC-plated
Deployed array length	≈ 120 m, single-side extension from container
Deployment mechanism	Linked folding PV tables, manual or winch assisted
Ground adaptation	Roller-wheel chassis; foundation-light
Deployment time	< 3 hours
Protection	DC / AC isolation, surge protection, grounding
Monitoring	Remote telemetry, alarms, energy meter, data logging
Module performance	25 year power warranty

Transport vs Deployed

Let's start the conversation

Let’s engineer your site.

Site survey · load profile · configuration proposal · deployment plan

Get in Touch
